Axion: Water KPIs

Table of Contents

• Navigation
• KPI Dashboard
• KPI Cards
• Filters

Navigation

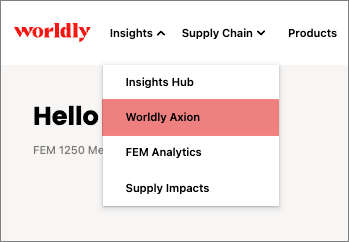

• Navigate to Insights and select Worldly Axion.
• This takes you to the Worldly Axion Overview page.

Select the KPI tab.

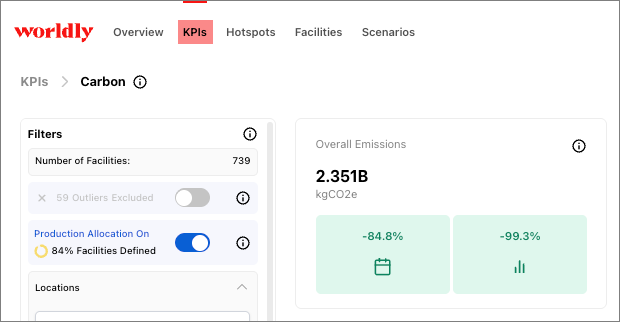

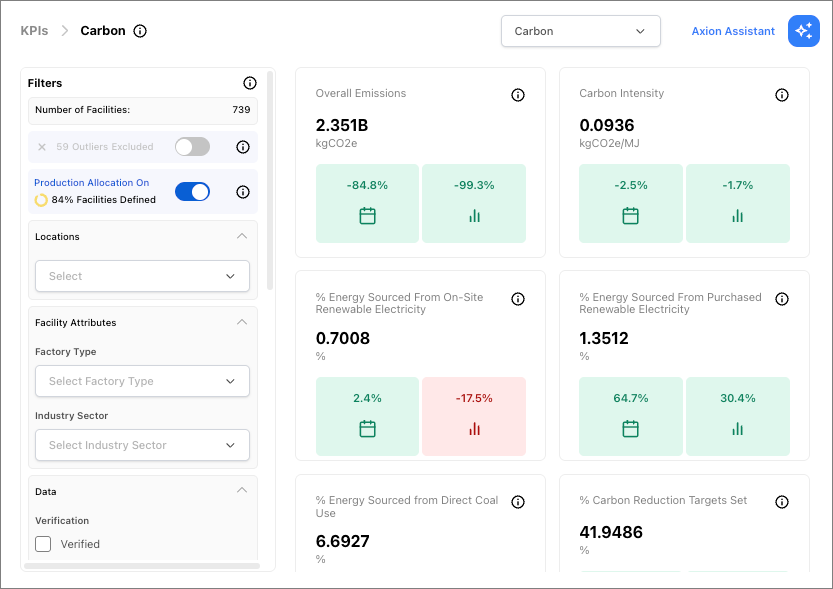

KPI Dashboard Overview

The KPI dashboard provides a high-level overview of Key Performance Indicators (KPIs) associated with an Risk Area.

KPI cards are located at the top of the page, which can be further refined by using the filters.

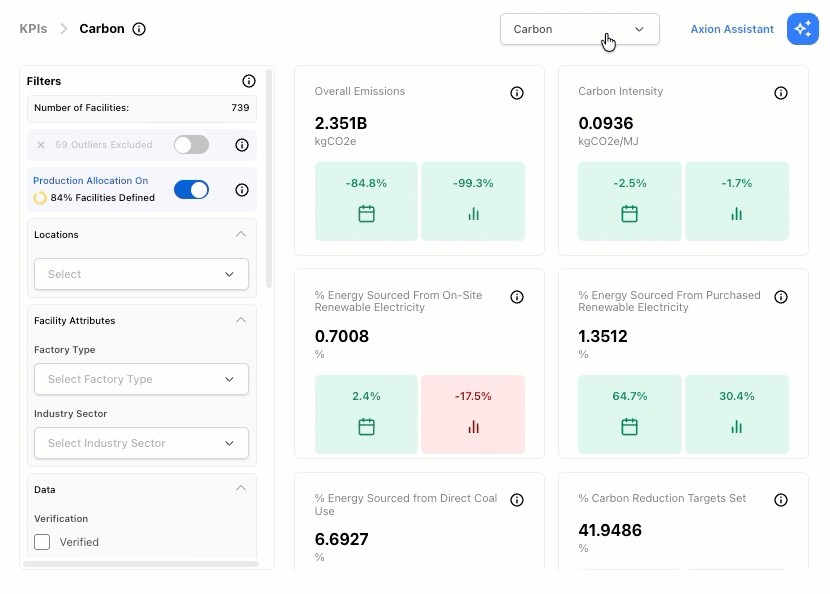

Change views by selecting between the Risk Areas.

KPI Cards

The Water Risk Area has the following KPI Cards:

• Total Water Use - The total volume of water used across all facilities, measured in liters. Includes all sources and uses.
• Water Intensity per kg - The amount of water used per unit of production. Calculated as total water use divided by total production volume. Higher values may indicate greater water dependency per item produced, although domestic and production water usage are not reported separately.
• Water Intensity per piece/pair - The amount of water used per unit of production. Calculated as total water use divided by total production volume. Higher values may indicate greater water dependency per item produced, although domestic and production water usage are not reported separately.
• % Water Sourced from Recycled/Reused Sources - The percentage of total water used which comes from recycled or reused sources across all facilities. Higher recycled water usage helps facilities reduce freshwater demand and their footprint during times of drought.
• % Water From: Withdrawn Sources - The percentage of total water used which comes from withdrawn sources, including municipal blue, municipal unknown water, and groundwater. Higher withdrawn water usage percentages indicate potential higher risk during times of drought.
• % Water Reduction Targets Set - The percentage of facilities that have set official water reduction targets to manage or reduce water consumption.
• % Facilities in High Exposure Regions - The proportion of facilities located in regions with high baseline water stress and/or drought risk, indicating greater potential operational risk due to regional-level water scarcity.
• % Facilities With High Water Vulnerability - The percentage of facilities that are more vulnerable to periods of high water stress. Facilities that use relatively more water in production, and/or have lower proportional recycled water usage will have higher vulnerability.
• % Facilities in High Water Stress Regions by 2030 - The percentage of facilities expected to be in high water stress regions by 2030.

At the top of the dashboard, each KPI Card highlights a different critical metric for tracking progress.

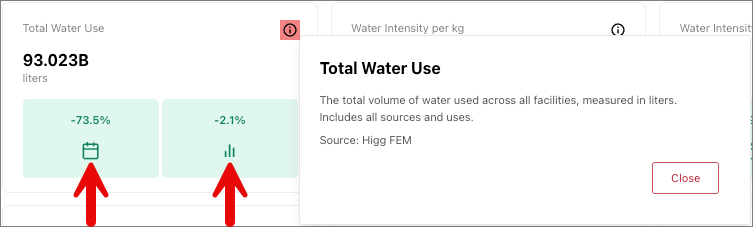

Each KPI card’s color-coding helps to quickly identify areas of concern versus those performing well. In addition to the KPI value, each card also includes:

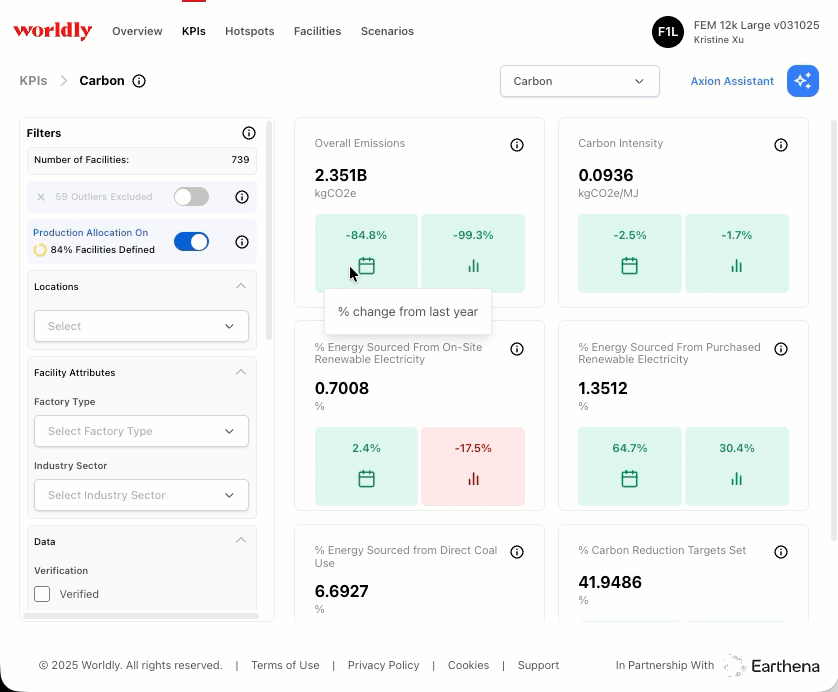

• Year-over-year changes symbolized by the calendar icon, which show the % change from last year.
• Peer comparison that benchmarks against similar companies in your industry, symbolized by the three vertical bars and show the % difference from benchmark.
• Information tooltip that defines each KPI Card, as well as the source for each KPI.

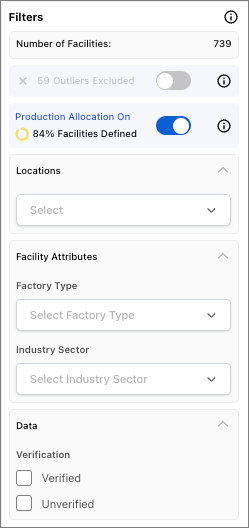

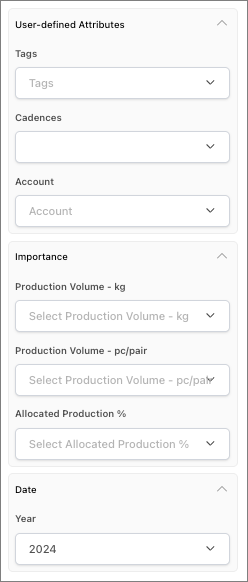

Filters

The left-hand filter column automatically updates all metrics throughout the dashboard to reflect the filtered data set. Filters that are applied once are applied to all tabs within Worldly Axion. The dashboard filters enable users to organize and slice the data to quickly determine which facilities are best suited for intervention.

Adjust these filters to model different future states by country, facility type, production process and year. This enables more specific scenarios by facility, region or other combination of facilities based on filters. Further detail on how these metrics are defined can be found in the Methodology.
