Axion: Carbon KPIs

Table of Contents

• Navigation
• KPI Dashboard
• KPI Cards
• Filters

Navigation

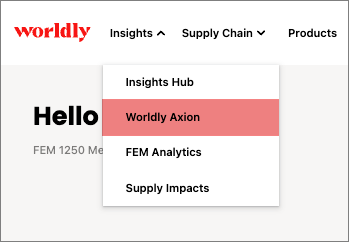

• Navigate to Insights and select Worldly Axion.
• This takes you to the Worldly Axion Overview page.

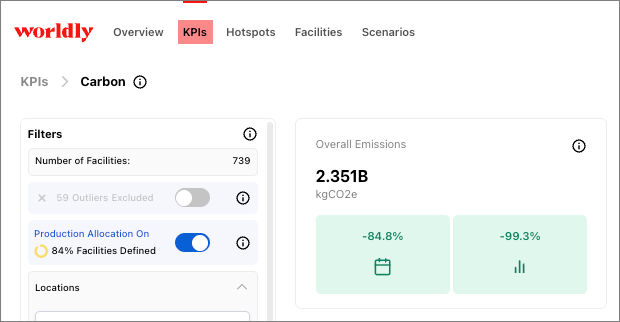

Select the KPI tab.

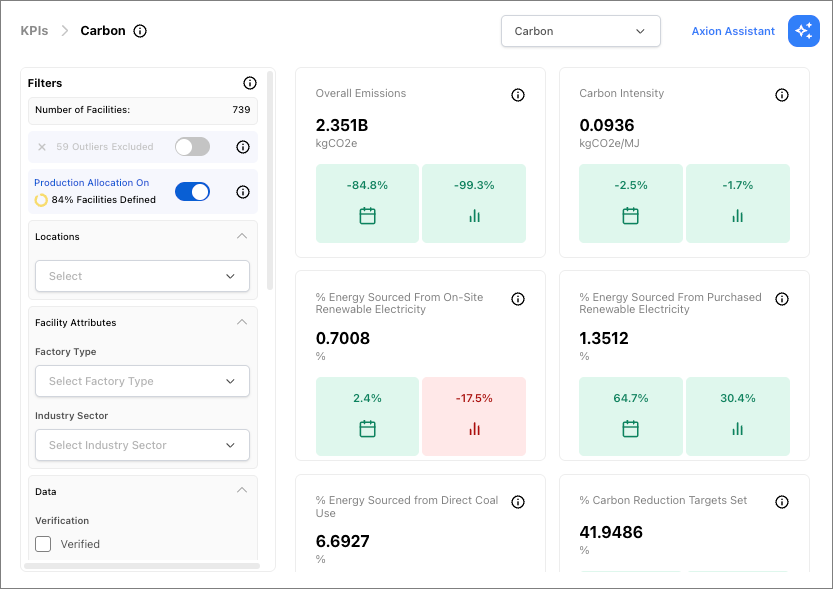

KPI Dashboard Overview

The KPI dashboard provides a high-level overview of Key Performance Indicators (KPIs) associated with an Risk Area.

KPI cards are located at the top of the page, which can be further refined by using the filters.

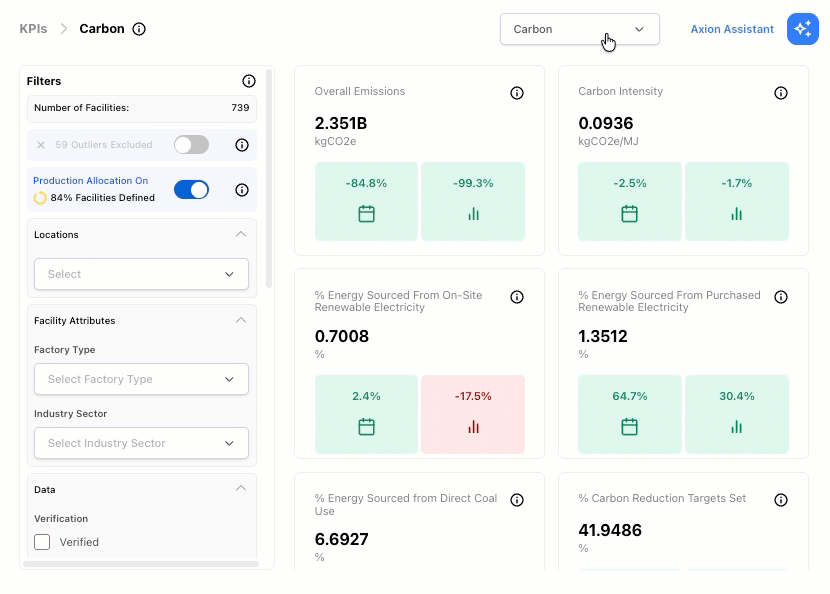

Change views by selecting between the Risk Areas.

KPI Cards

The Carbon Risk Area has the following KPI Cards:

• Overall Emissions - Total reported emissions including refrigerants and reported carbon offsets across all selected facilities, measured in kilograms of CO₂ equivalent (kgCO₂e).
• Carbon Intensity - A measure of how many kilograms of carbon dioxide equivalent are emitted per one megajoule of energy consumed.
• % Energy Sourced From On-Site Renewable Electricity - The percentage of electricity that comes from onsite renewable sources.
• % Energy Sourced From Purchased Renewable Electricity - The percentage of electricity that comes from purchased renewable sources including REC’s, EAC’s and PPA’s.
• % Energy Sourced from Direct Coal Use - The percentage of facility energy derived specifically from onsite coal. Coal usage is often associated with high carbon intensity.
• % Carbon Reduction Targets Set - The percentage of facilities that have set a carbon reduction target.

At the top of the dashboard, each KPI Card highlights a different critical metric for tracking progress.

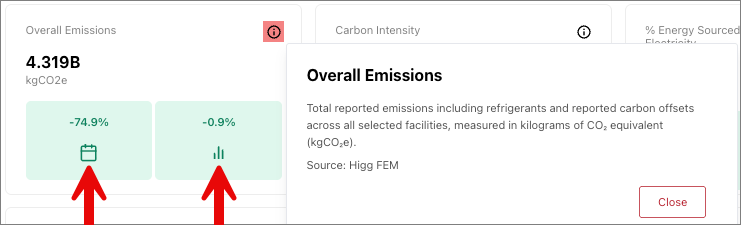

Each KPI card’s color-coding helps to quickly identify areas of concern versus those performing well. In addition to the KPI value, each card also includes:

• Year-over-year changes symbolized by the calendar icon, which show the % change from last year.
• Peer comparison that benchmarks against similar companies in your industry, symbolized by the three vertical bars and show the % difference from benchmark.
• Information tooltip that defines each KPI Card, as well as the source for each KPI.

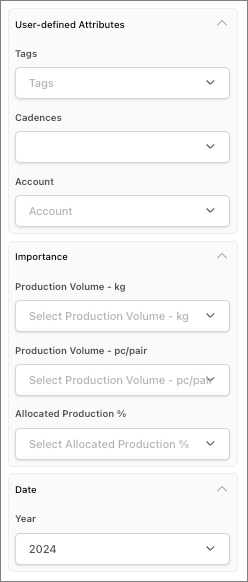

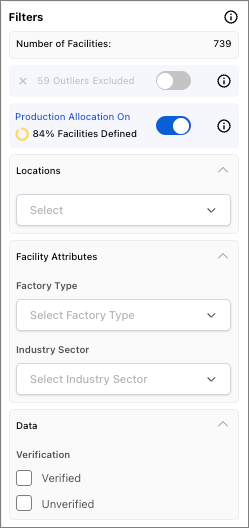

Filters

The left-hand filter column automatically updates all metrics throughout the dashboard to reflect the filtered data set. Filters that are applied once are applied to all tabs within Worldly Axion. The dashboard filters enable users to organize and slice the data to quickly determine which facilities are best suited for intervention.

Adjust these filters to model different future states by country, facility type, production process and year. This enables more specific scenarios by facility, region or other combination of facilities based on filters. Further detail on how these metrics are defined can be found in the Methodology.
